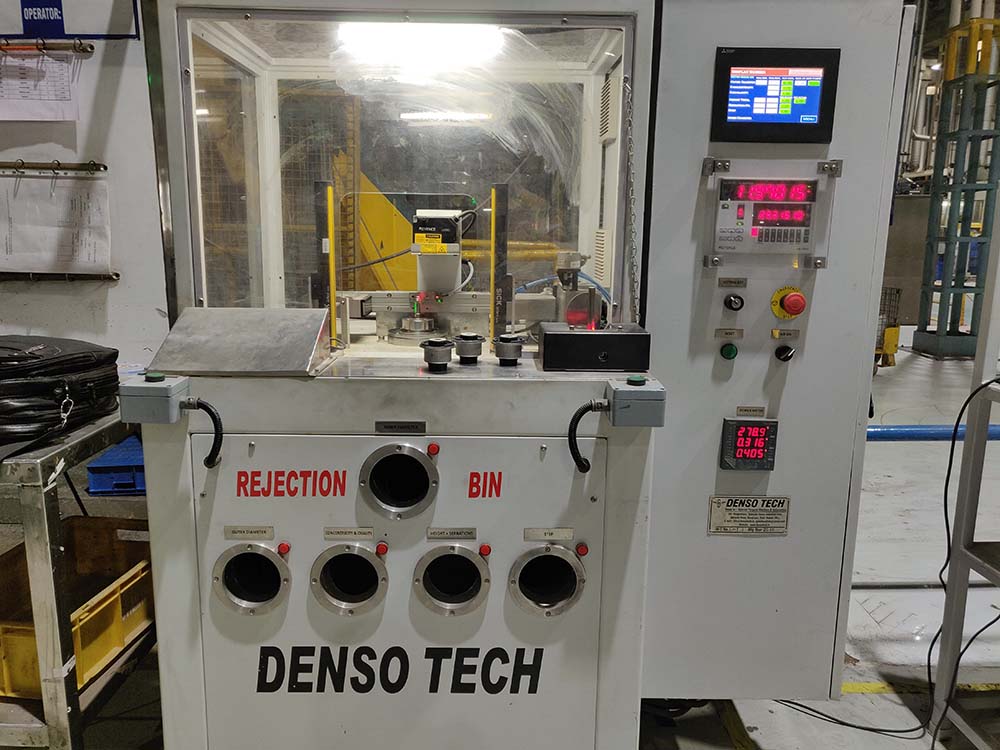

Laser Based Inspection MC for Automotive Components With Ok Marking
- Internal Diameter (with GO-NOGO gauge installed on machine)
- Outer Diameter (Least Count 0.001mm) (Range min. 35mm to max. 61mm)
- Ovality (Least Count 0.001mm)
- Concentricity (Least Count 0.001mm)
- Total Height (Least Count 0.01mm)
- Step (Least Count 0.01mm)
- Serration (Least Count 0.01mm)

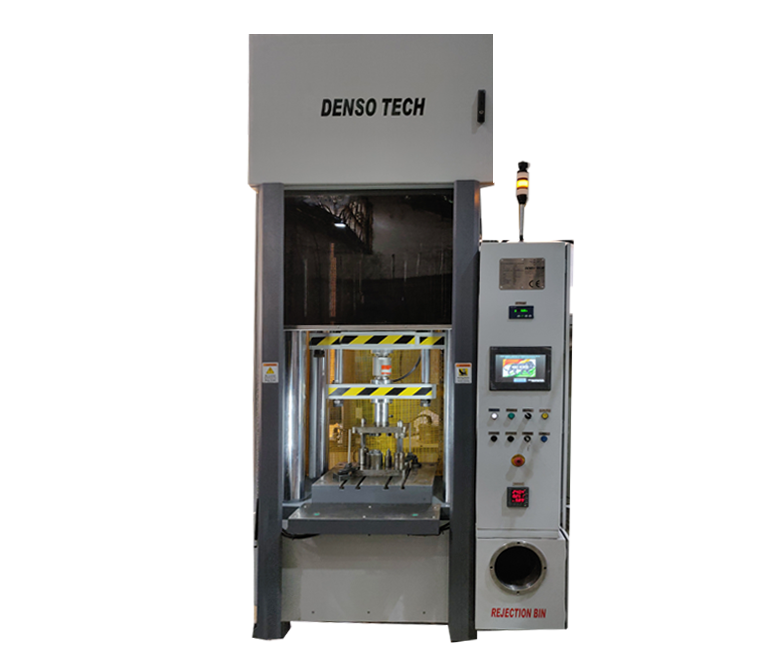

Assembly Press 65 Ton for Automotive Parts with Load & Displacement Monitoring
- Risk Assessment & this machine is Done as per ISO 12100.
- Machine Design As per ISO 13849-1.
- Machine is as per the standard EN 16092-1, EN 16092-3, EN 60204-1.
- Capacity 65 Ton.
- Rapid Speed 250mm/sec .
- Feed Speed 25mm/ sec.
- Swiss Make Load Cell.
- Linear Transducer.
- Mitsubishi Make PLC & HMI.
- Sick make Safety Category 4 Light Curtain.
- Cycle Time 4 seconds.

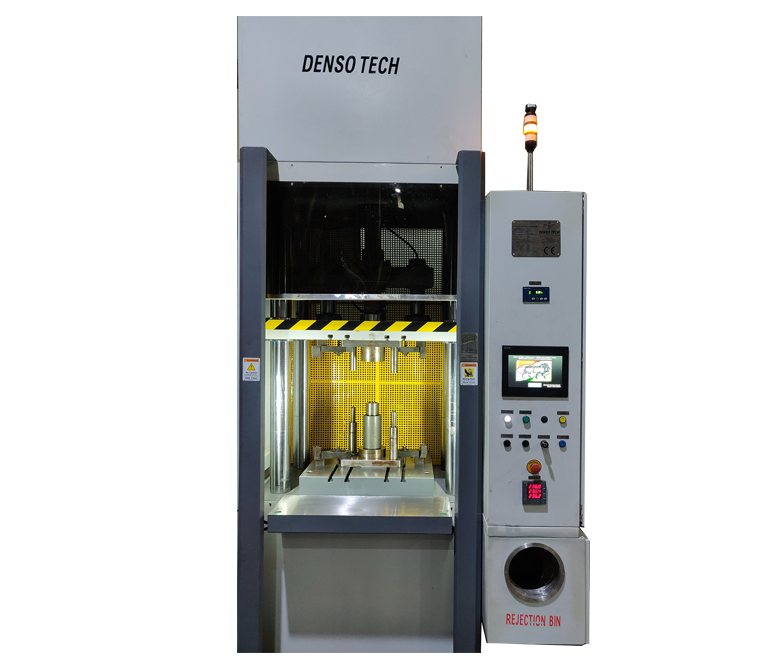

Auto Assembly Press 30 Ton for Automotive Parts with Load & Displacement Monitoring
- Risk Assessment & this machine is Done as per ISO 12100.
- Machine Design As per ISO 13849-1.
- Machine is as per the standard EN 16092-1, EN 16092-3, EN 60204-1.
- Capacity Upto 30 Ton ( Adjustable can be set via Touch Screen) .
- Capacity Upto 30 Ton ( Adjustable can be set via Touch Screen) .
- Feed Speed 25mm/ sec ( Variable can be set via Touch Screen) .
- Acceleration and Deceleration feature.
- Swiss Make Load Cell.
- Linear Transducer.
- Mitsubishi Macke PLC & HMI.
- Sick make Category 4 Safety Light Curtain Sensor.
- Variable Displacement Hydraulic Pump with Proportional Valves for Pressure and Flow Control.

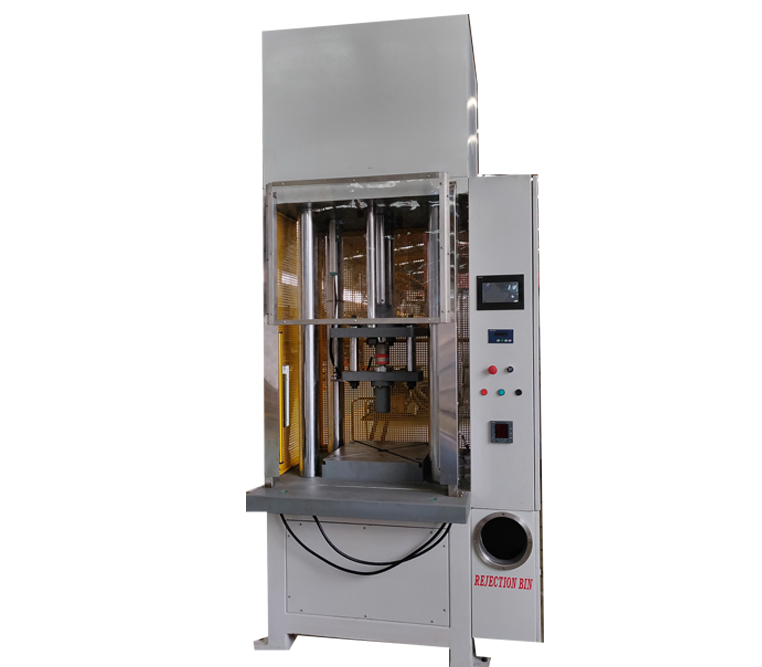

Auto Assembly Press 20 Ton for Automotive Parts with Load & Displacement Monitoring at Multiple Position.
- It gives Load data of automotive part with respect to displacement at multiple positions of interference fit
- This machine has been installed with Cat 4 safety curtains.
- Machine has 2 different feed rates, to increase the productivity.
- This machine also displays graph of load vs displacement data of every component.

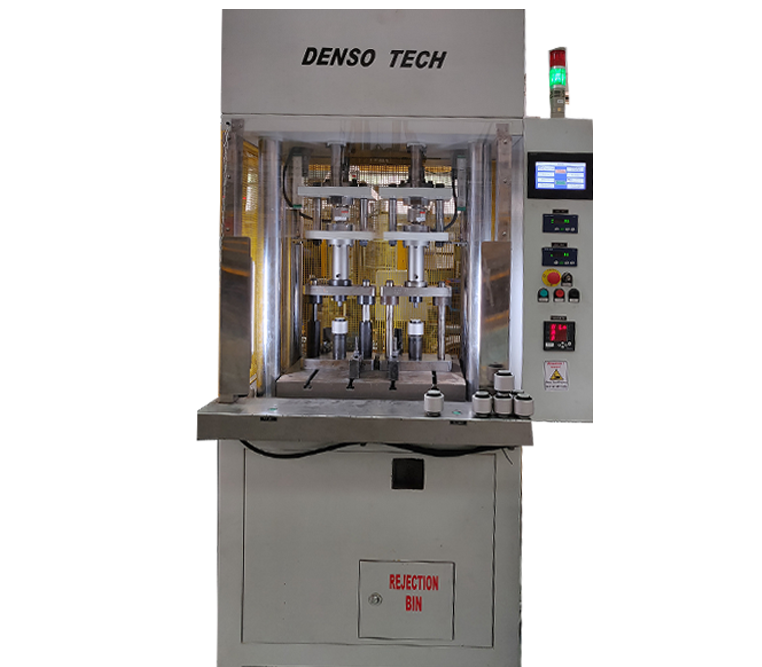

Double Station Auto Assembly Press 4 Ton for Automotive Part with Load & Displacement Monitoring at Multiple Position
- This machine is double station 4 Ton assembly press with having load & displacement monitoring feature.
- Both stations can be operated at same time.
- It gives Load data of automotive part with respect to displacement at multiple positions of interference fit.
- This machine has been installed with Cat 4 safety curtains.
- Machine has 2 different feed rates, to increase the productivity.
- This machine even gives graph of load vs displacement of every component.
- Machine has also has auto marking assembly, which does marking on OK pcs.

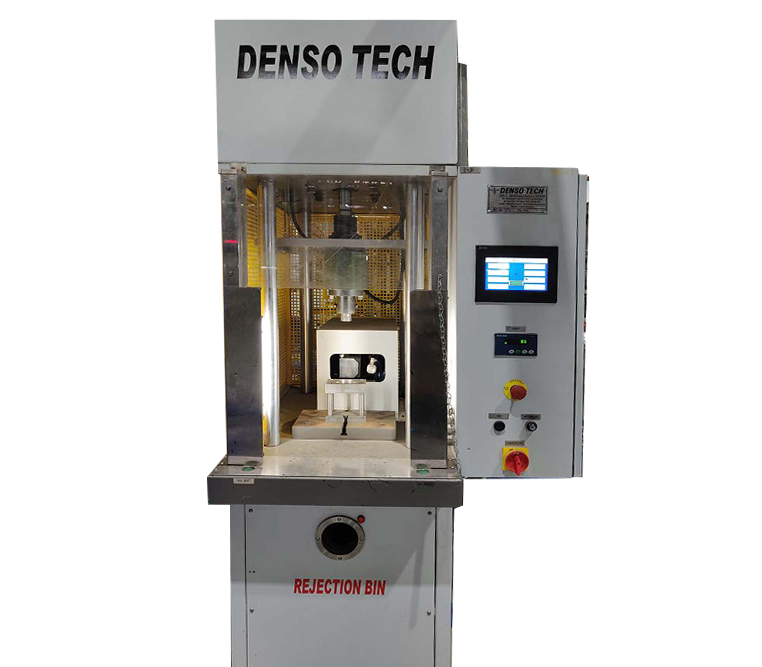

Adhesion Testing Machine for Auto Part with ok Marking Assembly
- 500 Kgs Adhesion Testing
- Rubber bonding test
- Load Cell
- Linear Transducer
- NG parts in Rejection Bin
- Cycle Time 7seconds
Fully Automatic Rechrome Line
- 13 Tanks .
- Machine Design As per ISO 13849-1.
- – MS Tank With Rubber.
- – PP Tank.
- – SS Tank.
- Automatic Transporter.
- All Controls on HMI.
- Process parameters can be checked and monitored through HMI
Automatic Transporter for Phosphating Line
- Overhanging Transporter.
- Meet challenge of uneven height of existing Tanks.
- 13 Tanks.
- MS Tank With Rubber.
- PP Tank.
- SS Tank.
- Automatic Transporter
- All Controls on HMI
- Process parameters can be checked and monitored through HMI
